Szczegóły Produktu:
Zapłata:
|
| Brand: | Maneurop | Freyueney: | 380V/50HZ 3HP |
|---|---|---|---|
| Tyep: | scrool | color: | blue |
| material: | steel | refrigerant: | R404/R22/R134A/R507C |
| High Light: | ac condenser unit,bitzer condenser unit |
||

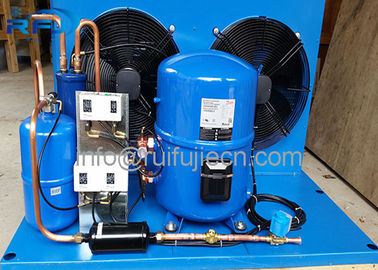

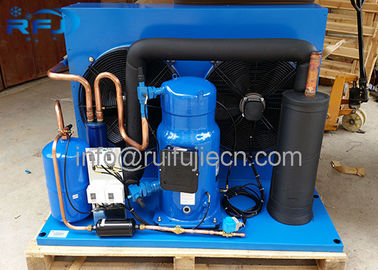

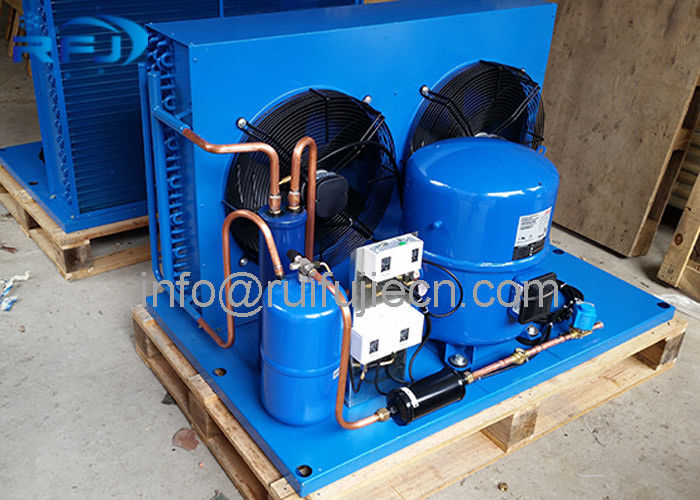

Air Cooled Condensing Units Type CMT(E) and CLT(E) include: •
Maneurop compressor with oil level sight glass and rotolock service valves.
• Dual fan condenser with guards and end covers.
• High capacity receiver with liquid shutoff valve.
• Prewired electrical box with contactor and with start kit or transformer when appropriate.
PTC compressor crankcase heater (prewired).
• Dual pressure control (prewired).
Water Cooled Condensing Units Type CM(E)W and CL(E)W include:
• Maneurop compressor with oil level sight glass and rotolock service valves.
• Tube in tube water cooled condenser with water regulating valve mounted.
• High capacity receiver with liquid shutoff valve.
Prewired electrical box with contactor and with start kit or transformer when appropriate.
• Dual pressure control (prewired).
| model | nominal | refrigerating | specifications of connecting tube | dimension(mm) | installation size(mm) | |||||
| HP | w | return gas(mm) | outlet(mm) | A | B | C | a | b | ||
| MT28/FH22H | 2.5 | 4700 | 12 | 10 | 870 | 650 | 570 | 820 | 420 | |
| MT36/FH33H | 3 | 6010 | 16 | 10 | 920 | 700 | 570 | 880 | 470 | |
| MT50/FH37.5H | 4 | 7400 | 22 | 12 | 920 | 700 | 570 | 880 | 470 | |
| MT64/FH49H | 5 | 9780 | 22 | 12 | 1020 | 700 | 670 | 980 | 460 | |
| MT80/FH70H | 6.7 | 12380 | 28 | 16 | 1220 | 850 | 1080 | 1180 | 610 | |
| MT100/FH80H | 8 | 14340 | 28 | 16 | 1220 | 850 | 1080 | 1180 | 610 | |
| MT125/FH100H | 10 | 19190 | 28 | 16 | 1440 | 850 | 1280 | 1400 | 610 | |
| MT160/FH130H | 13 | 24090 | 28 | 16 | 1220 | 850 | 1080 | 1180 | 610 | |
| MT28/FH18M | 2.5 | 2730 | 12 | 10 | 640 | 545 | 520 | 590 | 315 | |
| MT36/FH22M | 3 | 3560 | 16 | 10 | 870 | 650 | 570 | 820 | 420 | |
| MT50/FH33M | 4 | 4280 | 22 | 12 | 920 | 700 | 570 | 880 | 470 | |
| MT64/FH42M | 5 | 5690 | 22 | 12 | 1020 | 700 | 670 | 980 | 460 | |
| MT80/FH55M | 6.7 | 7330 | 28 | 16 | 1220 | 850 | 770 | 1180 | 610 | |
| MT100/FH70M | 8 | 8210 | 28 | 16 | 1220 | 850 | 1080 | 1180 | 610 | |
| MT125/FH80M | 10 | 11450 | 28 | 16 | 1440 | 850 | 1280 | 1400 | 610 | |
| MT160/FH115M | 13 | 14460 | 28 | 16 | 1440 | 850 | 1280 | 1400 | 680 | |
