Dobra cena. w Internecie

szczegółowe informacje o produktach

Created with Pixso. Do domu Created with Pixso. produkty Created with Pixso.
Chłodnicze agregaty skraplające
Created with Pixso. Spb04km Compressor Air Cooled Condenser , Cold Room Condensing Unit

Spb04km Compressor Air Cooled Condenser , Cold Room Condensing Unit

Nazwa marki: RFJ
Numer modelu: SPB04KM
MOQ: 1piece
Cena £: discussed
Czas dostawy: 3-7 days
Warunki płatności: T/T, Western Union
Szczegółowe informacje
Place of Origin:
China
Orzecznictwo:
CC
Color:
Blue
Power Supply:
380V 3pH 50Hz
Cooling Capacity:
15.61kw
Input Power:
6.44kw
Original:
China
Tyoe:
condensing unit
OEM service:
Yes
Nazwa handlowa:
RFJ
Packaging Details:
wooden packaging
Supply Ability:
10000pieces
Podkreślić:

air cooled condensing unit

,

bitzer condenser unit

Opis produktu

Spb04km Compressor Air Cooled Cold Room Condensing Unit

1.Product Description

System alarm function:
When fault effects, the system will make alarm sound to remind user



Multi protections:
Phase protection, phase lack, over current, constantly starts of compressor, discharge temp.
Fan speed regulator:
Adjust condensing fan according to condensing temp.
Operation data display function:
To check important data such as current of compressor, and condensing temp.

2.Picture

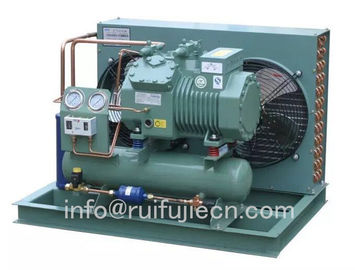

Spb04km  Compressor Air Cooled Condenser , Cold Room Condensing Unit 0

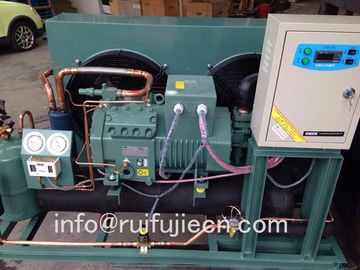

Spb04km  Compressor Air Cooled Condenser , Cold Room Condensing Unit 1






3.Technical

Technical Data Of Air Cooled Compressor Condensing Unit
Air-cooled Compressor Condensing Unit with medium Temperature
Condensing Unit model Compressor Model Power Supply refrigerating capacity(KW) Air cooled Condenser Specification of connecting tube
        Model Total(m3/h) Dia of fan (mm) Out let(mm) Return gas(mm)
SPB03KM 2DES-3Y 380V 3PH 50HZ 7.68 FHN28 4400 350 10 16
SPB04KM 2CES-4Y   9.50 FHN37.5 4400 350 10 16
SPB05KM 4FES-5Y   10.28 FHN45 6000 400 12 16
SPB06KM 4EES-6Y   12.89 FHN55 6000 400 12 22
SPB07KM 4DES-7Y   15.61 FHN71 8800 350 12 22
SPB09KM 4CES-9Y   18.91 FHN80 12000 400 12 22
SPB10KM 4VES-10Y   19.61 FHN92 12000 400 12 28
SPB12KM 4TES-12Y   23.80 FHN100 12000 400 16 28
SPB15KM 4PES-15Y   27.00 FHN131 20000 450 16 28





4.FAQ



      * Why we choose such big compressor horsepower?

Fresh food has a lot of heat and need the big compressor horsepower to cool down within 4-6 hours.

      * Why does the blast cold room need to use the vertical air cooler?

The vertical air cooler have big fin spacing, big air flow and very easy to install

     *  Why the temperature is so low?

Fresh food need to reach -20C within 4-6 hours so that need -35C or -40C cold room temperature.
