| Nazwa marki: | RFJ |
| Numer modelu: | SPB07WM |
| MOQ: | 1piece |
| Cena £: | discussed |
| Czas dostawy: | 3-7 days |
| Warunki płatności: | T/T, Western Union |
Product Description
Fan speed regulator:
Adjust condensing fan according to condensing temp.
Operation data display function:
To check important data such as current of compressor, and condensing temp.
System alarm function:
When fault effects, the system will make alarm sound to remind user
Independent Operation board:
1. For temp. showing, defrosting controlling, operation system data checking and temp. alarming
2. Can be installed anywhere available.

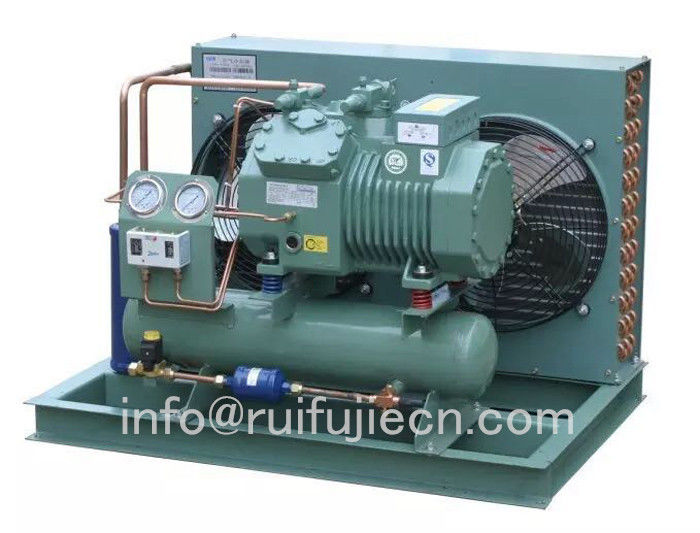

2.Picture
3.Technical
| Condensing Unit model | Compressor Model | Power Supply | refrigerating capacity(KW) | input power (KW) | Air cooled Condenser | |||
| Model | Total(m3/h) | Dia of fan (mm) | motor power(W) | |||||
| SPB03KM | 2DES-3Y | 380V 3PH 50HZ | 7.68 | 3.21 | FHN28 | 4400 | 350 | 2*200 |
| SPB04KM | 2CES-4Y | 9.50 | 3.95 | FHN37.5 | 4400 | 350 | 2*200 | |
| SPB05KM | 4FES-5Y | 10.28 | 4.27 | FHN45 | 6000 | 400 | 2*300 | |
| SPB06KM | 4EES-6Y | 12.89 | 5.39 | FHN55 | 6000 | 400 | 2*300 | |
| SPB07KM | 4DES-7Y | 15.61 | 6.44 | FHN71 | 8800 | 350 | 4*200 | |
| SPB09KM | 4CES-9Y | 18.91 | 7.89 | FHN80 | 12000 | 400 | 4*300 | |
| SPB10KM | 4VES-10Y | 19.61 | 7.74 | FHN92 | 12000 | 400 | 4*300 | |
| SPB12KM | 4TES-12Y | 23.80 | 9.53 | FHN100 | 12000 | 400 | 4*300 | |
| SPB15KM | 4PES-15Y | 27.00 | 10.78 | FHN131 | 20000 | 450 | 4*370 | |
4.FAQ
Fresh food has a lot of heat and need the big compressor horsepower to cool down within 4-6 hours.
Fresh food need to reach -20C within 4-6 hours so that need -35C or -40C cold room temperature.
The vertical air cooler have big fin spacing, big air flow and very easy to install.
4-6 hours is fast enough and very economical. 2-3 hours will need even bigger horsepower compressor and more expensive.
