Dobra cena. w Internecie

szczegółowe informacje o produktach

Created with Pixso. Do domu Created with Pixso. produkty Created with Pixso.
Chłodnicze agregaty skraplające
Created with Pixso. Unit - Spb03kl Air Cooled Condensing Unit for Model 2ces-3y

Unit - Spb03kl Air Cooled Condensing Unit for Model 2ces-3y

Nazwa marki: RFJ
Numer modelu: Spb03kl
MOQ: 1piece
Cena £: discussed
Czas dostawy: 3-7 days
Warunki płatności: T/T, Western Union
Szczegółowe informacje
Place of Origin:
China
Orzecznictwo:
CC
Color:
Blue
Power Supply:
380V 3pH 50Hz
Cooling Capacity:
15.61kw
Input Power:
6.44kw
Original:
China
Tyoe:
condensing unit
OEM service:
Yes
Nazwa handlowa:
RFJ
Packaging Details:
wooden packaging
Supply Ability:
10000pieces
Podkreślić:

air cooled condensing unit

,

bitzer condenser unit

Opis produktu

Air Cooled Compressor Condensing Unit-SPB03KL for model 2CES-3Y


Product Description
Fan speed regulator:
Adjust condensing fan according to condensing temp.
Operation data display function:
To check important data such as current of compressor, and condensing temp.
System alarm function:
When fault effects, the system will make alarm sound to remind user
Independent Operation board:
1. For temp. showing, defrosting controlling, operation system data checking and temp. alarming
2. Can be installed anywhere available.

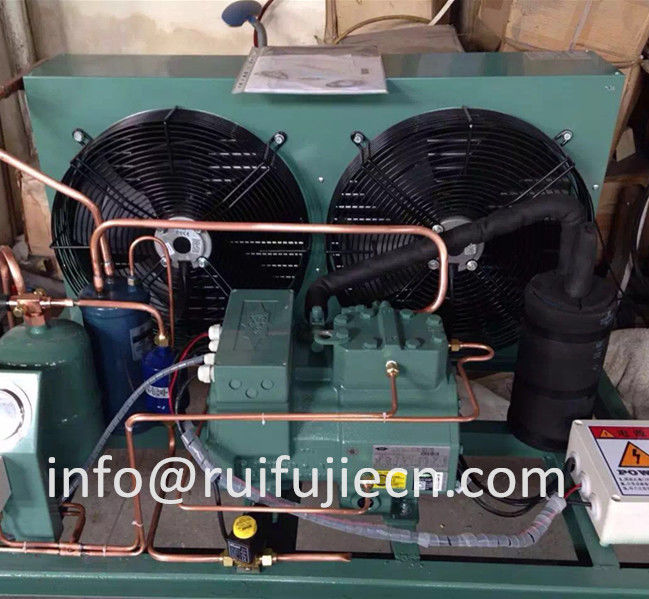

2.Picture

Unit - Spb03kl  Air Cooled Condensing Unit for Model 2ces-3y 0

Unit - Spb03kl  Air Cooled Condensing Unit for Model 2ces-3y 1

3.Technical

Installation Size Of Air Cooled Compressor Condensing Unit
Installation Size For Air-Cooled Compressor Condensing Unit with medium&LowTemperature
Condensing Unit model Compressor Model Overall Size(mm)
    L(A) W(B) H(C)
SPB03KL 2CES-3Y 780 680 700
SPB04KL 4EES-4Y 780 680 700
SPB05KL 4DES-5Y 880 760 800
SPB06KL 4CES-6Y 880 760 800
SPB09KL 4TES-9Y 1130 760 700
SPB12KL 4PES-12Y 1130 760 700
SPB14KL 4NES-14Y 1130 760 800
SPB18KL 4HE-18Y 1340 860 760
SPB23KL 4GE-23Y 1490 860 960
SPB28KL 6HE-28Y 1590 860 960
SPB34KL 6GE-34Y 1590 860 1360
SPB44KL 6FE-44Y 1190 360 860





4.FAQ

     *  Why we choose such big compressor horsepower?

Fresh food has a lot of heat and need the big compressor horsepower to cool down within 4-6 hours.

     *  Why the temperature is so low?

Fresh food need to reach -20C within 4-6 hours so that need -35C or -40C cold room temperature.

     *  Why does the blast cold room need to use the vertical air cooler?

The vertical air cooler have big fin spacing, big air flow and very easy to install.

     *  Can the blast freezer cooling time be shorter?

4-6 hours is fast enough and very economical. 2-3 hours will need even bigger horsepower compressor and more expensive.
