| Nazwa marki: | RFJ |
| Numer modelu: | MP54 MP55 series |
| MOQ: | 1pcs |
| Cena £: | discussed |
| Czas dostawy: | 7-10 working days after received your payment |
| Warunki płatności: | L/C, T/T, Western Union |

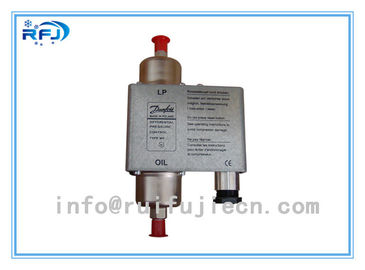

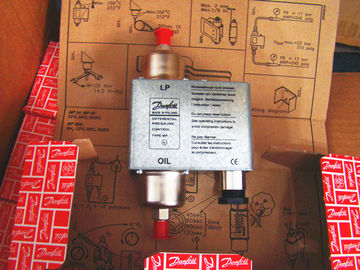

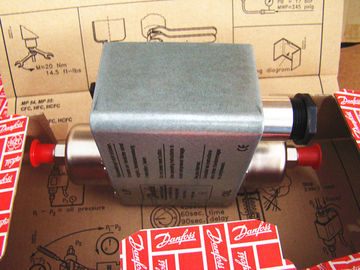

Refrigeration controls Oil Differential Pressure Control MP Series
Specifications:
MP Series oil differential pressure control
MP-MP-A pressure difference controller,
MP 54 and MP 55 oil differential pressure controller is a type of safety switch to prevent the refrigeration compressor oil pressure is too low. If the oil pressure drops below the set value, at a certain time interval, the pressure difference controller operation, the compression.
MP 54 and MP 55 oil differential pressure controls are used as sefety switches to protect refrigeration compressors.
Please find More Models as below:
| Oil Pressure Controls | |
| 060B0172 | MP55, DIFF. P/CONTROL 90S DELAY |
| 060B0168 | PRESSURE CONT. OIL 90SEC |
| 060B0171 | PRESSURE CONT 60SEC DELAY |
|
Type
|
Pressure | Max pressure | Agjust | Relay | Code No. | |||
| (bar) | p | (bar) | (s) | Connection | ||||
| (bar) | ¼in./6mm | 1m Cappliary ¼in.ODF ODF |
Cut 6mm |
|||||
| SAE | ||||||||
| MP54 | 0.65 | 0.2 | -1 ~ +12 | 0 | B | 060B0297 | ||
| 45 | A | 060B0166 | ||||||
| 0.9 | 60 | 060B0167 | ||||||
| 0.65 | 90 | 060B0168 | ||||||
| 120 | 060B0169 | |||||||
| MP55 | 0.3 ~ 4.5 | 45 | 060B0170 | 060B0133 | ||||
| 60 | 060B0171 | 060B0134 | 060B0188 | |||||
| 60 | 060B0178 | |||||||
| 90 | 060B0172 | |||||||
| 120 | 060B0173 | 060B0136 | ||||||
| 0 | B | 060B0299 | 060B0295 | |||||
|
Code
|
Type |
| MP | |
| 060B029766 | differential pressure control MP 54 |
| 060B016666 | |
| 060B016766 | |
| 060B016866 | |
| 060B016966 | |
| 060B013366 | differential pressure control MP 55 |
| 060B013466 | |
| 060B013666 | |
| 060B017066 | |
| 060B017166 | |
| 060B017266 | |
| 060B017366 | |
| 060B017866 | |
| 060B018866 | |
| 060B029466 | |
| 060B029566 | |
| 060B029966 | |
| 060B017466 | differential pressure control MP 55A |
| 060B017566 | |
| 060B017666 | |
| 060B017766 | |
| 060B017966 | |
| 060B018266 | |
| 060B018366 | |
| 060B018466 | |
| 060B018566 | |
| 060B029666 | |
| 060B029866 |
|
