| Piston Type: | Reciprocating | Configuration: | Stationary |
|---|---|---|---|
| Power Source: | AC Power | Lubrication Style: | Lubricated |
| Gas: | 407C;R134a;R404A;R507 | Drive Mode: | Electric |
| Color: | Blue | Type: | Refrigeration Piston Compressor |
| Temperature: | Middle/High | voltage: | 230 |
| Electric supply: | 230v/one phase/50Hz | N.W: | 23KGS |
| High Light: | scroll compressor refrigeration,copeland refrigeration compressors |
||

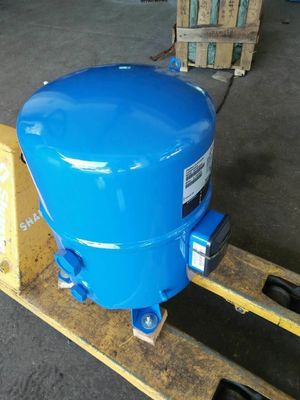

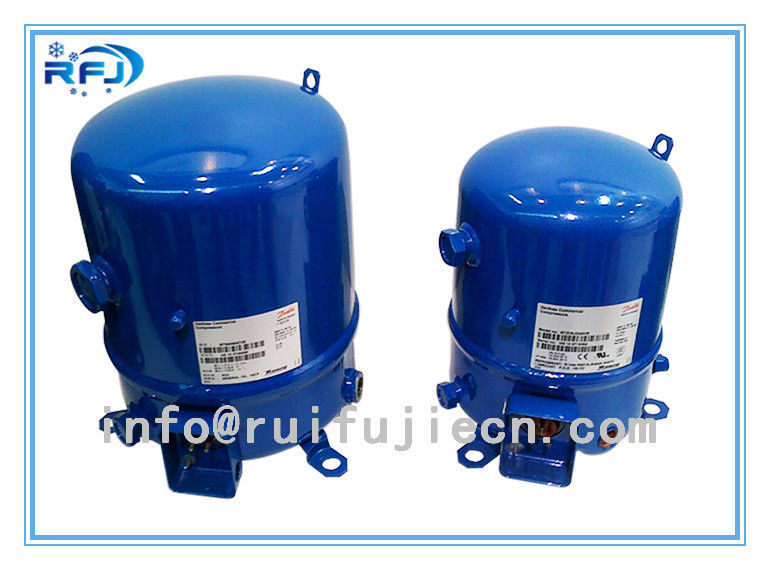

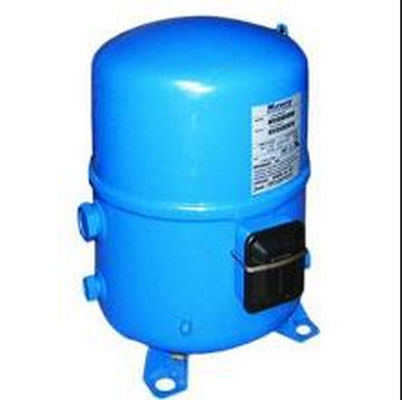

Maneurop Refrigeration model MTZ22-5VI 1 phase Piston reciprocating compressor
The compressor range goes from small direct current hermetic compressors for mobile applications up to large scroll compressors for commercial air conditioning or industrial applications. Special versions, such as energy optimized compressors, variable speed compressors and compressors for solar applications are available. The range covers all common HFC, HCFC and CFC refrigerants as well as hydro-carbons for the smaller models. compressors are used in numerous applications such as white goods, mobile refrigeration, light commercial refrigeration, commercial refrigeration and air conditioning.
Specification:
Maneurop MT/MTZ series compressors are of the hermetic reciprocating type and are designed for Medium and high evaporating temperature applications.
There are 26 different models with displacement ranging from 30-543cm3/rev.
Our Maneurop compressors are for 50Hz, motor code is 4, can be used for R22/R407C/R134a/R404A/R507
1. Piston /reciprocating type compressors.
2. Voltage is 50Hz
3. The refrigerant are R22/R407C/R134a/R404A/R507
4. There are MT/MTZ series
5. Original from France.
6. Capacity: 1.5HP~13HP, High efficiency, Low noise
1. MT series for R134a
2. MTZ series for R407c/134a
1. 50 Hz
2. Imported form France.
3. R22 Rated condition:50Hz/400V
superheat:11.1K
subcooling 8.3K condensing temp:54.4°C
4. R407C Rated condition :50Hz 400V
superheat:11.1K
subcooling 8.3K condensing temp:54.4°C
evaporating temp.7.2°C
refrigeration and power input±5%
| Brand: | Maneurop |
|---|---|
| Connection: | - |
| Dim 1 (mm): | 333 |
| Model Number: | MTZ22-5VI |
| Voltage: | 230 |
| Warranty: | 1 Year |
| Depth With Decoration Panel (mm): | - |
| Displacement CC: | 38,12 |
| Electric Supply: | 230v/one phase/50Hz |
| Electrical Rating: | - |
| Phase: | - |
| Refrigerant: | R407C;R134a;R404A;R507 |
| Refrigerant Suitability: | R404A/R507, R407C, R13a |
| Tube Connection Size (mm): | 0 ?/? |
| Valve Connections: | - |
| Width With Decoration Panel (mm): | - |
| Horse Power: | 1,8 |
| Expansion Device: | V |
| Application Temperature (C): | Med;High |
| Application Temperature (C): | Med;High |
| TYPE CODE | MTZ |
| NET WEIGHT | 23.00 Kg |
| APPROVAL STANDARDS | CCC certified; CE certified |
| AUXILIARY WINDING RESISTANCE (START WINDING) FOR SINGLE-PHASE COMPRESSORS [OHM] | 4.74 |
| BRAND TECHNIQUE | Reciprocating compressor |
| CAPACITY CONTROL | Fixed speed |
| CAPACITY OF CAPACITOR A | 20 |
| CAPACITY OF CAPACITOR B | 100 µF |
| CAPACITY OF CAPACITOR C | 10 |
| CONFIGURATION CODE | Single |
| CONNECTION TYPE | Rotolock |
| CYLINDER | 1 |
| DISCHARGE CONNECTION MOUNTING TORQUE [NM] | 80 |
| DISCHARGE CONNECTION PIPE SIZE [IN] | 3/8 |
| DISCHARGE CONNECTION ROTOLOCK SIZE [IN] | 1 |
| DISCHARGE CONNECTION SIZE [IN] | 1 |
| DISCHARGE CONNECTION SLEEVE PIPE SIZE [IN] | 3/8 |
| DRAWING NUMBER | 8501021e |
| ECONOMIZER | No |
| FACTORY HP [BAR] | 25 |
| FACTORY LP [BAR] | 25 |
| FITTING REMARK | (shipped with rotolock version only) |
| FITTING SLEEVE | ODF |
| FITTING STANDARD | Rotolock |
| FREQUENCY [HZ] | 50 |
| GP LP TORQUE [NM] | 15 |
| GAUGE PORT HP | None |
| GAUGE PORT LP | Schrader |
| GENERATION CODE | no |
| GLASS MOUNTING | Threaded |
| GLASS TORQUE [NM] | 50 |
| GROSS WEIGHT | 24.88 Kg |
| HIGH VALUE OF NOMINAL VOLTAGE AT 50HZ [V] | 230 |
| HIGH VALUE OF NOMINAL VOLTAGE AT 60HZ [V] | 0 |
| HIGH VALUE OF VOLTAGE RANGE AT 50HZ [V] | 253 |
| HIGH VALUE OF VOLTAGE RANGE AT 60HZ [V] | 0 |
| IP PROTECTION CLASS | IP55 (with cable gland) |
| LRA | 41 A |
| LOW VALUE OF NOMINAL VOLTAGE AT 50HZ [V] | 230 |
| LOW VALUE OF NOMINAL VOLTAGE AT 60HZ [V] | 0 |
| LOW VALUE OF VOLTAGE RANGE AT 50HZ [V] | 207 |
| LOW VALUE OF VOLTAGE RANGE AT 60HZ [V] | 0 |
| MCC | 15 A |
| MAIN WINDING RESISTANCE FOR SINGLE-PHASE COMPRESSORS [OHM] | 1.78 |
| MODEL NUMBER | MTZ22JC5VE |
| MOTOR PROTECTION | Internal overload protector |
| MOUNTING TORQUE [NM] | 15 |
| NOMINAL COOLING CAPACITY AT 50HZ | 2.6 |
| NOMINAL COOLING CAPACITY AT 60HZ | 3.6 |
| NUMBER OF STARTS PER HOUR | 12 |
| OIL CHARGE [CM3] | 0.95 |
| OIL EQUALIZATION | 3/8'' flare SAE |
| OIL EQUALIZATION TORQUE [NM] | 48 |
| OIL REFERENCE | 160PZ |
| PACKAGING HEIGHT [MM] | 385 |
| PACKAGING LENGTH [MM] | 330 |
| PACKAGING WEIGHT [KG] | 25 |
| PACKAGING WIDTH [MM] | 295 |
| PACKING FORMAT | Single pack |
| PACKING QUANTITY | 1 |
| PHASE | 1 |
| POWER CONNECTIONS | Spade |
| REFRIGERANT | R134a; R404A; R407A; R407C; R407F; R507A |
| REFRIGERANT CHARGE [KG] | 2.5 |
| RELIEF VALVE | 30 bar/8 bar |
| ROTATIONAL SPEED AT 50HZ [RPM] | 2900 |
| ROTATIONAL SPEED AT 60HZ [RPM] | 0 |
| SEGMENT USAGE | Air conditioning; Refrigeration MT |
| SHIPPED FITTINGS | Suction and discharge solder sleeves, rotolock nuts, and gaskets |
| SHIPPED INSTRUCTIONS | Installation instructions |
| SHIPPED MOUNTING | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| SHIPPED OIL | Initial oil charge |
| SPEED PLATFORM | Fixed-speed |
We can supply more compressor models as below:
| MODEL (R22) | MODEL (R404A) | NTZ series |
| MT18-4VM | MTZ18-4VM | NTZ048A4LR1A |
| MT22-4VM | MTZ22-4VM | NTZ068A4LR1A |
| MT28-4VM | MTZ28-4VM | NTZ096A4LR1A |
| MT32-4VM | MTZ32-4VM | NTZ108A4LR1A |
| MT36-4VM | MTZ36-4VM | NTZ136A4LR1A |
| MT40-4VM | MTZ40-4VM | NTZ215A4LR1A |
| MT44-4VM | MTZ44-4VM | NTZ271A4LR1A |
| MT50-4VM | MTZ50-4VM | |
| MT56-4VM | MTZ56-4VM | |
| MT64-4VM | MTZ64-4VM | |
| MT72-4VM | MTZ72-4VM | |
| MT80-4VM | MTZ80-4VM | |
| MT100-4VM | MTZ100-4VM | |
| MT125-4VM | MTZ125-4VM | |
| MT144-4VM | MTZ144-4VM | |
| MT160-4VM | MTZ160-4VM |
| Model NO. | Nom HP | Displ. Cc/rev | Capacity R404a(w) | |
| -10 | -5 | |||
| MTZ18-4VI | 1.5 | 30.2 | 1580 | 2110 |
| MTZ18-5VI | 1.5 | 30.2 | 1580 | 2110 |
| MTZ22-4VI | 1.8 | 38.12 | 2270 | 2920 |
| MTZ22-5VI | 1.8 | 38.12 | 2270 | 2920 |
| MTZ28-4VI | 2.3 | 48.06 | 2880 | 3720 |
| MTZ28-5VI | 2.3 | 48.06 | 2880 | 3720 |
| MTZ32-4VI | 2.7 | 53.86 | 3230 | 4220 |
| MTZ32-5VI | 2.7 | 53.86 | 3230 | 4220 |
| MTZ36-4VI | 3 | 60.47 | 3800 | 4870 |
| MTZ36-5VI | 3 | 60.47 | 3800 | 4870 |
| MTZ40-4VI | 3.3 | 67.89 | 4280 | 5490 |
| MTZ45-4VI | 3.8 | 76.22 | 4420 | 5840 |
| MTZ51-4VI | 4.2 | 85.64 | 5290 | 6920 |
| MTZ57-4VI | 4.8 | 96.13 | 6060 | 7880 |
| MTZ65-4VI | 5.4 | 107.71 | 7080 | 9130 |
| MTZ73-4VI | 6.1 | 120.94 | 7960 | 10230 |
| MTZ81-4VI | 6.8 | 135.78 | 9160 | 11720 |
| MTZ100-4VI | 8.3 | 171.26 | 10390 | 13500 |
| MTZ125-4VI | 10.4 | 215.44 | 13650 | 17500 |
| MTZ144-4VI | 12 | 241.87 | 15740 | 20120 |
| MTZ160-4VI | 13.3 | 271.55 | 17690 | 22520 |
| Code no. | HP | MT-R22 | MTZ-R407C | MTZ-R134a | MTZ-R404 | ||||||||
| Kw | BTUH | EER | Kw | BTUH | EER | Kw | BTUH | EER | Kw | BTUH | EER | ||
| MT/MTZ18 | 1.5 | 1.74 | 15900 | 9.15 | 1.67 | 15300 | 9.13 | 1.22 | 11200 | 9.2 | 1.76 | 10300 | 5.1 |
| MT/MTZ22 | 2 | 2.27 | 22000 | 9.68 | 2.17 | 19600 | 9 | 1.54 | 14800 | 9.63 | 2.05 | 14100 | 6.01 |
| MT/MTZ28 | 2.5 | 3.07 | 30200 | 9.86 | 2.83 | 25100 | 8.9 | 2.04 | 19300 | 9.42 | 2.68 | 18300 | 5.96 |
| MT/MTZ32 | 2.75 | 3.58 | 33000 | 9.22 | 3.21 | 28400 | 8.86 | 2.39 | 20900 | 8.76 | 2.99 | 20100 | 5.85 |
| MT/MTZ36 | 3 | 4.05 | 38000 | 9.38 | 3.75 | 32700 | 8.73 | 2.75 | 24500 | 8.91 | 3.34 | 23200 | 6.05 |
| MT/MTZ40 | 3.5 | 4.63 | 42900 | 9.27 | 4.33 | 37400 | 8.64 | 3.08 | 27900 | 9.03 | 3.77 | 26400 | 6.11 |
| MT/MTZ44 | 4 | 4.67 | 45200 | 9.69 | 4.37 | 43000 | 9.84 | 3.14 | 29800 | 9.51 | 4.18 | 27800 | 6.65 |
| MT/MTZ50 | 4.5 | 5.18 | 50500 | 9.74 | 4.96 | 48100 | 9.71 | 3.6 | 34500 | 9.57 | 4.83 | 32500 | 6.73 |
| MT/MTZ56 | 5 | 6.05 | 56400 | 9.32 | 5.67 | 54300 | 9.59 | 3.95 | 38000 | 9.62 | 5.44 | 36500 | 6.71 |
| MT/MTZ64 | 5.5 | 6.8 | 64800 | 9.53 | 6.36 | 60400 | 9.5 | 4.68 | 45300 | 9.66 | 6.12 | 41500 | 6.78 |
| MT/MTZ72 | 6 | 7.58 | 70100 | 9.26 | 7.22 | 67900 | 9.41 | 5.19 | 50000 | 9.63 | 6.91 | 46500 | 6.72 |
| MT/MTZ80 | 7 | 8.56 | 80000 | 9.35 | 8.24 | 76900 | 9.33 | 6 | 56500 | 9.42 | 8.03 | 52500 | 6.54 |
| MT/MTZ100 | 9 | 9.59 | 95900 | 10 | 9.9 | 94400 | 9.53 | 6.5 | 63900 | 9.84 | 8.72 | 60800 | 6.07 |
| MT/MTZ125 | 10 | 12.81 | 124600 | 9.73 | 12.62 | 122100 | 9.67 | 7.72 | 78900 | 10.2 | 11.37 | 78400 | 6 |
| MT/MTZ144 | 12 | 14.36 | 140700 | 9.8 | 14.47 | 137200 | 9.48 | 9.82 | 96900 | 9.87 | 13 | 92300 | 6.19 |
| MT/MTZ160 | 13.5 | 16.09 | 156800 | 9.75 | 16.67 | 155100 | 9.31 | 10.92 | 107600 | 9.85 | 14.74 | 100300 | 5.93 |
