Szczegóły Produktu:
Zapłata:
|
| Piston Type: | hermetic | Configuration: | Protable |
|---|---|---|---|
| Power Source: | AC | Lubrication Style: | Lubricated |
| Electric supply: | 230v/one phase/50Hz | Gas: | R404a and R507 |
| Application Temperature: | LBP | Horse power: | 2/3 |
| High Light: | scroll compressor refrigeration,copeland refrigeration compressors |
||

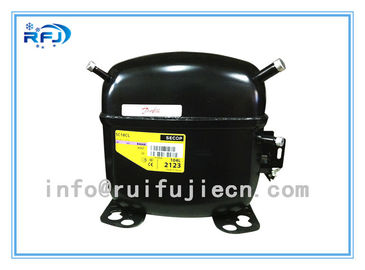

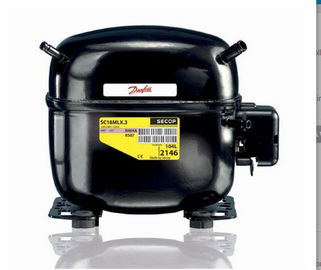

Hermetic Scroll Freezer Refrigeration Secop SC18CLX compressor r404a and r507
The SC18CLX compressor range goes from small direct current hermetic compressors for mobile applications up to large scroll compressors for commercial air conditioning or industrial applications. Special versions, such as energy optimized compressors, variable speed compressors and compressors for solar applications are available. The range covers all common HFC, HCFC and CFC refrigerants as well as hydro-carbons for the smaller models. compressors are used in numerous applications such as white goods, mobile refrigeration, light commercial refrigeration, commercial refrigeration and air conditioning.
| Connection: | Tube |
|---|---|
| Dim 1 (mm): | 219 |
| Model Number: | SC18CLX |
| Warranty: | 1 Year |
| Depth With Decoration Panel (mm): | - |
| Displacement CC: | 17,68 |
| Electric Supply: | 230v/one phase/50Hz |
| Electrical Rating: | - |
| Phase: | - |
| Refrigerant: | R404A |
| Refrigerant Suitability: | R404A, R507 |
| Tube Connection Size (mm): | 10,2 |
| Valve Connections: | - |
| Width With Decoration Panel (mm): | - |
| Horse Power: | 2/3 |
| Expansion Device: | C/V |
| Application Temperature (C): | Low |
| Application Temperature (C): | Low |
More Secop Specification:
1. The voltage is 12V/24V/48V/220V to 240V
2. Hermetic compressor
3. the refrigerant is R134a R404 /R 507/R 22
4. Low Back pressure /High Back presssure
5. frequency is 50/60 HZ
We can supply more Secop compressor models as below:
| Model | Code | Voltage | Refrigerant |
| NL7CLX | 105F3710 | 220-240V/50HZ | R404A |
| NL8.4CLX | 105F3800 | ||
| FR6CL | 103U2670 | ||
| FR8.5CLX | 103U2890 | ||
| NF5.5CLX | 105F1621 | 115V/60HZ | |
| NF7CLX | 105F3720 | ||
| TL4.5CLX | 102U2111 | 220-240V/50HZ | |
| TL4CLX | 102U2071 | ||
| TF4CLX | 102U2102 | 115-127V/60HZ | |
| FR6G | 103G6660 | 220-240V/50HZ | R134A |
| FR7.5G | 103G6680 | ||
| FR8.5G | 103G6780 | ||
| FR10G | 103G6890 | ||
| FR11G | 103G6980 | ||
| NL6.1MF | 105G6660 | 220-240V/50-60HZ | |
| NL8.4MF | 105G6879 | ||
| NL10MF | 105G6885 | ||
| NL11MF | 105G6151 | ||
| NL10FT | 105G6829 | 220-240V/50HZ | |
| FR7GH | 103G6683 | ||
| FF6GK | 103G5680 | 115V/60HZ | |
| FF7.5GK | 103G5780 | ||
| FF8.5GX | 103G5880 | ||
| FF10GX | 103G5980 | ||
| NF5.5FX | 105G5623 | 115-127V/60HZ | |
| NF6.1FX.2 | 105G5631 | ||
| NF7.3FX.2 | 105G5722 | ||
| NF8.4FX.2 | 105G5631 | ||
| NF11FX | 105G5947 | ||
| TL5G | 102G4550 | 220-240V/50HZ | |
| TL4G | 102G4452 |
