Szczegóły Produktu:
Zapłata:
|
| series: | DL type | Color: | white/Black |
|---|---|---|---|
| Voltage: | 380/220 | Power: | 75-4*780W |
| Diameter of fan: | 300-600mm | Air Volume: | 1563-36000m3/h |
| High Light: | air cooled condenser in refrigeration,air cooled condensing unit |
||

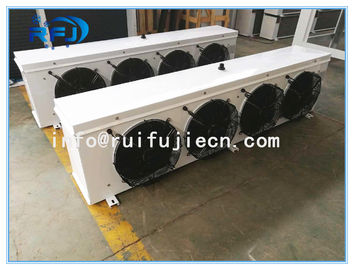

Type Standard air cooler D series DL-69.4/340
Product Features:
D series air cooler is a complete library of cooling cooling equipment freon refrigeration unit used;by the use of temperature to sub-divided into DL,DD,DJ three series,can be separately applied to different storage temperature ,DL type air cooler mainly applied to the preservation of about 0℃,DD type air cooler is mainly applied to the refrigerator of -18℃,DJ type cooling fan is mainly applied to -25℃ or less frozen library.
The series has the following characteristics:
1. Designed for fresh,chilled and frozen;
2. The shell is made of high quality steel,powder coated,corrosion resistance,aesthetic appearance;
3. Coil using the wrong row or parallel manner,using a mechanical expander, brass and aluminum so closely,good effect of heat transfer;
4. High-quality stainless steel electric heating tube evenly distributed in the coil,good defrosting effect, defrost using electric heating tube and finned aluminum casing hole close,easy to heat,long life;
5. Cooler design width reasonable, blades and aluminum fin spacing is greater than 1/3 diameter of the blades to ensure there is enough effective air flow;
6. You can use long-range air duct according to customer requirements.
| DL condole type air cooler technology parameters | ||||||||||||
| Fin space:4.5mm | ||||||||||||
| Model |
Refrig erating capacity |
Nominal area | Volume | Inlet/Outlet tube of refrigerant | Parameters of fan | Eletrothermal defrosting | ||||||
| Quantity | Diameter of fan | Voltage | Power | Air Volume | Range | Defrosting power of fins | Power of defrosting pan | |||||
| W | ㎡ | L | mm | N | mm | V | W | m3/h | m | W | W | |
| DL-2/10 | 2000 | 10 | 1.4 | Ф12/Ф19 | 1 | 300 | 380/220 | 75 | 1563 | 8 | 600 | 600 |
| DL-6.2/30 | 6200 | 30 | 3.5 | Ф12/Ф19 | 2 | 350 | 380/220 | 2*140 | 4580 | 8 | 2400 | 1200 |
| DL-12.3/60 | 12300 | 60 | 7.6 | Ф16/Ф22 | 2 | 400 | 380/220 | 2*180 | 6800 | 10 | 3000 | 1500 |
| DL-21.5/105 | 21500 | 105 | 13.5 | Ф19/Ф40 | 2 | 500 | 380 | 2*414 | 12000 | 15 | 4500 | 1500 |
| DL-32.8/160 | 32800 | 160 | 19.6 | Ф25/Ф40 | 3 | 500 | 380 | 3*414 | 18000 | 15 | 6000 | 2000 |
| DL-42.9/210 | 42900 | 210 | 25.8 | Ф25/Ф48 | 4 | 500 | 380 | 4*414 | 24000 | 15 | 7200 | 2400 |
| DL-53.3/260 | 53300 | 260 | 32.2 | Ф25/Ф50 | 4 | 500 | 380 | 4*414 | 24000 | 15 | 9600 | 2400 |
| DL-69.4/340 | 69400 | 340 | 41.9 | Ф28/Ф54 | 4 | 550 | 380 | 4*600 | 32000 | 15 | 12000 | 2400 |
| DL-83.6/410 | 83600 | 410 | 51.6 | Ф28/Ф54 | 4 | 600 | 380 | 4*780 | 36000 | 15 | 19200 | 2400 |
|
Remark:When Tr=-25℃ and Δt=10℃,R134a energy should multiply correction factor f,that is QoR134a=QoR22Xf. |
||||||||||||
| Standard type air cooling machine size parameters | |||||||||||
| Model | Length | Width | Height | Position size of the mounting hole | Space | Drainage to take over the outer diameter | |||||
| L | B | H | D | E | E1 | E2 | E3 | F | W | ||
| DL-2/10 | 670 | 460 | 485 | 360 | 455 | / | / | / | 87 | 300 | G1" |
| DD-1.2/7 | |||||||||||
| DL-4.3/20 | 1300 | 460 | 485 | 360 | 1085 | / | / | / | 87 | 300 | G1" |
| DD-2.8/15 | |||||||||||
| DJ-1.7/10 | |||||||||||
| DL-8.2/40 | 1380 | 460 | 580 | 360 | 1085 | / | / | / | 107 | 350 | G1" |
| DD-5.3/30 | |||||||||||
| DJ-3.4/20 | |||||||||||
| DL-12.3/60 | 1750 | 460 | 580 | 360 | 1455 | / | / | / | 107 | 350 | G1" |
| DD-7.0/40 | |||||||||||
| DJ-5.1/30 | |||||||||||
| DL-21.5/105 | 1920 | 580 | 680 | 470 | 1625 | 800 | / | / | 107 | 450 | G1" |
| DD-14.9/80 | |||||||||||
| DJ-8.9/55 | |||||||||||
| DL-32.8/160 | 2720 | 580 | 680 | 470 | 2425 | 800 | 800 | / | 107 | 500 | G1" |
| DD-22.3/120 | |||||||||||
| DJ-14.3/85 | |||||||||||
| DL-37.9/185 | 3120 | 580 | 680 | 470 | 2825 | 700 | 700 | 700 | 107 | 500 | G1.5" |
| DD-26.2/140 | |||||||||||
| DJ-17.9/105 | |||||||||||
| DL-53.3/260 | 3520 | 630 | 680 | 520 | 3225 | 800 | 800 | 800 | 107 | 500 | G2" |
| DD-37.2/200 | |||||||||||
| DJ-23.9/140 | |||||||||||
| DL-69.4/340 | 3520 | 680 | 880 | 570 | 3225 | 800 | 800 | 800 | 107 | 610 | G2" |
| DD-48.4/255 | |||||||||||
| DJ-28.9/170 | |||||||||||
