Szczegóły Produktu:
Zapłata:
|
| model: | ZR61kCE-PFV-522 | Stall current: | 144A |
|---|---|---|---|
| Noise acoustic power: | 74dba | Input Power: | 5500W |
| horsepower: | 5HP | BTU: | 62000 |
| Refrigeration capacity: | 18200W | Weight: | 39.5KG |
| electricity: | 25.4A | ||
| High Light: | copeland a c compressor,commercial refrigeration compressor |
||
Copeland Refrigeration Compressors Scroll Type Compressor ZR61KCE-PFV-522 1phase 208-230V/60HZ
ZR Compressor features:
Description:
1. Models have : ZR57KCE-PFV ZR68KCE-PFV ZR54KCE-PFV ZR36KC-PFV ZR48KCE-PFV.
2. The are Copeland scroll compressors, can be used for air conditioning and refrigeration.
3. We have models made in China,Thailand and Belguim.

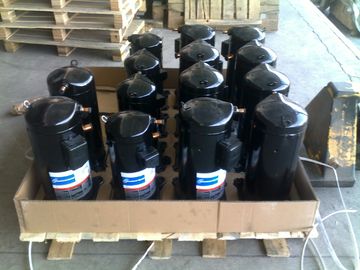

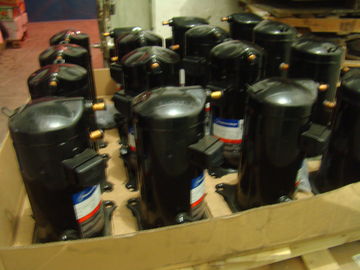

4. 16 units packing with one pallet.
With reliable performance, superior efficiency, quiet operation, and diagnostic capability, Emerson Climate Technologies offers the most advanced scroll technology available to support your commercial air-conditioning needs. With the widest R-410A selection available, the Copeland Scroll™ compressor offering ranges from 2–40 HP in singles and up to 80 HP in tandems.
We can supply more ZR models as follow:
| model | HP | Refrigeration capacity | Power Input | electricity | COP(W/W) | EER | displacement | Oil filling level | weight | Stall current | |
| W | BTU/h | W | A | BTU/Wh | cc/Rev | I | KG | A | |||
| ZR28KME-PFV | 2.3 | 8250 | 28100 | 2450 | 10.9 | 3.34 | 11.4 | 37.2 | 0.77 | 19.4 | 61.5 |
| ZR28KCE-PFV | 2.3 | 8500 | 29000 | 2620 | 12 | 3.22 | 11 | 39.3 | 1.12 | 26.7 | 73 |
| ZR32K3E-PFV | 2.7 | 9550 | 32600 | 2960 | 13.6 | 3.22 | 11 | 43.4 | 1.24 | 28.7 | 83 |
| ZR34KCE-PFV | 2.8 | 10050 | 34300 | 3120 | 14.6 | 3.22 | 11 | 46.2 | 1.24 | 28.5 | 93 |
| ZR36KCE-PFV | 3 | 10800 | 34300 | 3350 | 15.9 | 3.22 | 11 | 49.5 | 1.24 | 27.2 | 100 |
| ZR42KCE-PFV | 3.5 | 12300 | 36900 | 3820 | 19.7 | 3.22 | 11 | 57.2 | 1.24 | 28.1 | 127 |
| ZR45KCE-PFV | 3.8 | 13500 | 42000 | 4140 | 20.9 | 3.25 | 11.1 | 61.1 | 1.24 | 30.4 | 131 |
| ZR48KCE-PFV | 4 | 14600 | 46000 | 4330 | 19.5 | 3.37 | 11.5 | 65.6 | 1.24 | 32.2 | 137 |
| ZR54KCE-PFV | 4.5 | 16100 | 49800 | 4830 | 21.4 | 3.34 | 11.4 | 73.2 | 1.66 | 43.1 | 148 |
| ZR57KCE-PFV | 4.8 | 17000 | 55000 | 5040 | 23.6 | 3.37 | 11.5 | 77.2 | 1.66 | 40.8 | 148 |
| ZR61KCE-PFV | 5.1 | 18200 | 62000 | 5500 | 25.4 | 3.31 | 11.3 | 82.6 | 1.66 | 39.5 | 144 |
| ZR68KCE-PFV | 5.7 | 20400 | 69500 | 6200 | 28 | 3.28 | 11.2 | 93 | 1.77 | 40.4 | 176 |
