Szczegóły Produktu:
Zapłata:
|
| Type: | compressor condenser unit | Nazwa handlowa: | RFJ |
|---|---|---|---|
| Refrigerant:: | R22, R404a,R507c,R134a | Voltage:: | 380V-420V / 3PH / 50Hz |
| Horsepower:: | 44 HP | Power Source: | AC power |
| Oil: | Mineral oil/Polyester oil | Warranty: | 1 Year |
| Color:: | Green/White | Condition:: | New |
| High Light: | ac condenser unit,air cooled condensing unit |
||

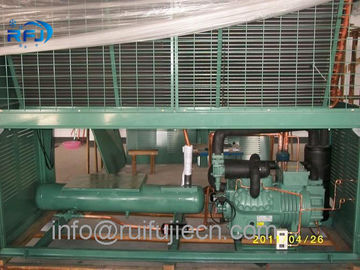

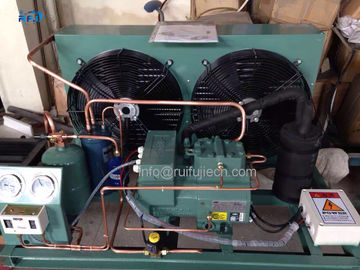

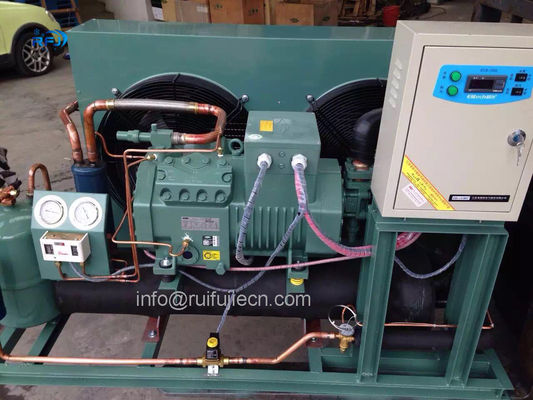

44hp V type compressor semi-hermetic condensing unit for industrial chiller room
Product Description
Packaging Details:
Plywood or wooden box
Delivery Detail:
3-7 days(in stock), 10-15 days(in customized)
Features:
1. compressor semi-hermetic condensing unit ,compact structure and good-looking figure;
2.Scientific designs, steady air flow, can fully exert heat-transfer capacity of the copeland cold room condensing unit;
3.Rational performance design, high energy efficiency;
4. compressor semi-hermetic condensing unit has axial fan, good-looking figure and low processing noise level;
5.Convenient design for maintain (front board can be easily take down);
6.We keep in touch well with our supplier, to guarantee material quality and production lead time of every order.
7.Various brand of compressor for your choice;
8. compressor semi-hermetic condensing unit fits different refrigerant: R134a·R404A·R507A·R22
Range of application
Refrigeration industry, cold-room project
Agricultural, food, restaurants, chemical industry
| Top Discharge Compressor Condensing Unit (U Type) | ||||||||||||
| Product Description: 1.condensing unit was assembled completely,installation is not constraint by site,a little space occupation. 2.double coils for condenser,eliminating the loss of heat exchange. 3.on the design of top discharge,air circulation consistent with the principle of air flow,no reflow phenomenon and improve the efficiency of heat transfer. 4.with external rotor motor,low noise,low power,large air volume. 5.original compressor,inner of condensing unit with the perfect protection system. |
||||||||||||
| Technical Parameters | ||||||||||||
| performance Modle | RFJ030H(U) | RFJ040H(U) | RFJ050H(U) | RFJ060H(U) | performance Modle | RFJ080H(U) | RFJ100H(U) | RFJ120H(U) | RFJ1500H(U) | |||
| nominal power(HP) | 3HP | 4HP | 5HP | 6HP | nominal power(HP) | 8HP | 10HP | 12HP | 15HP | |||
| Norminal refrigerating capacity (KW) |
5.05 | 6.05 | 8.00 | 10.20 | Norminal refrigerating capacity (KW) |
11.00 | 17.80 | 20.40 | 25.60 | |||
| Motor power (W) |
180W | 250W | 2*180W | 2*250W | Motor power (W) |
2*250W | 2*450W | 2*450W | 2*600W | |||
| Dia of fan (mm) | Φ400 | Φ450 | Φ400 | Φ450 | Dia of fan (mm) | Φ450 | Φ500 | Φ500 | Φ550 | |||
| Number of electric motors (a) | 1 | 1 | 2 | 2 | Number of electric motors (a) | 2 | 2 | 2 | 2 | |||
| Air Voume (M3/H) |
4500 | 4500 | 6220 | 6220 | Air Voume (M3/H) |
9000 | 13000 | 13000 | 16600 | |||
| Import and export | In(mm) | Φ16 | Φ16 | Φ16 | Φ22 | Import and export | In(mm) | Φ22 | Φ28 | Φ28 | Φ28 | |
| Out (mm) | Φ10 | Φ10 | Φ12 | Φ12 | Out (mm) | Φ12 | Φ12 | Φ16 | Φ16 | |||
| dimension(mm) | L(mm) | 750 | 1000 | 1270 | 1270 | dimension(mm) | L(mm) | 1370 | 1410 | 1500 | 1700 | |
| w(mm) | 650 | 650 | 700 | 700 | w(mm) | 800 | 850 | 900 | 900 | |||
| 820 | 820 | 820 | 920 | 920 | 1030 | 1130 | 1130 | |||||
| installation size(mm) | a(mm) | 420 | 700 | 870 | 870 | installation size(mm) | a(mm) | 970 | 910 | 900 | 1100 | |
| b(mm) | 720 | 720 | 770 | 770 | b(mm) | 860 | 910 | 960 | 1060 | |||
| Note:1.above datas are on the base of condensing temperature is 40℃ ,evaporation temperature is -15℃ , 2.reserve the right of design modified without prior inform. |
||||||||||||

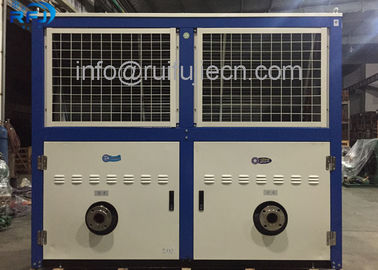

| Box Type Compressor Condensing Unit Dimensions | |||||||
| Unit Model | A | B | C | D | H | H1 | Installation bore |
| RFJ-BRA09M/60 RFJ-BRA06H/60 | 1050 | 750 | 700 | 850 | 1380 | 1500 | 4-θ13 |
| RFJ-BRA12M/80 RFJ-BRA09H/80 | 1150 | 880 | 830 | 950 | 1500 | 1630 | 4-θ13 |
| RFJ-BRA14M/100 RFJ-BRA10H/100 | 1370 | 880 | 830 | 1170 | 1600 | 1730 | 4-θ13 |
| RFJ-BRA18M/120 RFJ-BRA12H/120 | 1450 | 950 | 900 | 1250 | 1600 | 1730 | 4-θ13 |
| RFJ-BRA23M/160 RFJ-BRA15H/160 | 1610 | 950 | 900 | 1410 | 1600 | 1730 | 4-θ13 |
| RFJ-BRA28M/200 RFJ-BRA20H/200 | 1710 | 950 | 900 | 1510 | 1650 | 1830 | 4-θ13 |
| RFJ-BRA34M/240 RFJ-BRA25H/240 | 2120 | 1050 | 1050 | 1920 | 1780 | 1900 | 4-θ13 |
| RFJ-BRA30H/270 | 2300 | 1050 | 1050 | 2100 | 1780 | 1900 | 4-θ13 |
| RFJ-BRA44M/300 RFJ-BRA35H/300 | 2450 | 1050 | 1050 | 2250 | 1780 | 1900 | 4-θ13 |
