Szczegóły Produktu:
Zapłata:
|
| marki: | Hitachi | Wolt: | 380V / 50Hz |
|---|---|---|---|
| Refringerant: | R22 | Ważyć: | 36 kg |
| Kolor: | Czarny | Gwarancja: | rok |
| High Light: | hitachi refrigeration compressor,hitachi ac compressor |
||

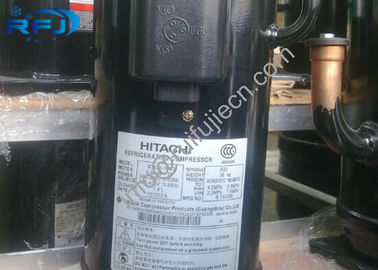

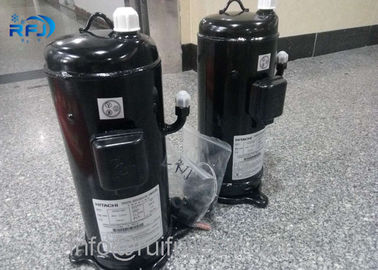

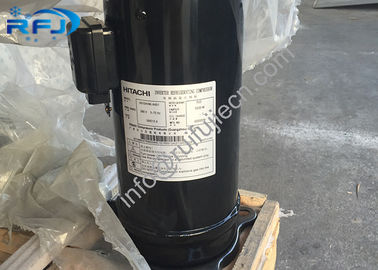

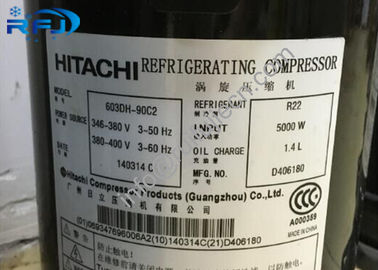

50HZ 603DH-90C2 Hitachi Scroll Compressor for commercial air conditioners
1.Commercial Air-Conditioning Scroll Compressor
2.Low sound & low vibration
3.High reliability & efficiency
4.High quanlity and long lifetime
5.Wide operating
6.Refrigerant: R22
7.Cooling Capacity: 57290 BTU
8.380V/3phase/50hz
9.More Hitachi Scroll Compressor details as below:
| Catalogue Hitachi DH serie Compressor | |||||||||
| Type | Model | Refrigerant | Colling Capacity | Test Condition | Motor Input | Current | COP | Oil Charge | |
| BTU/H | WATTS | WATTS | RLA | W/W | L | ||||
| STANDRAD TYPE | 303DH-47C2 | R22 | 29500 | 8650 | 380V/3~50Hz | 2700 | 5 | 3.2 | 1.2 |
| 303DH-50C2 | 32220 | 9450 | 2900 | 5.4 | 3.2 | 1.2 | |||
| 353DH-56C2 | 35460 | 10400 | 3200 | 6.2 | 3.25 | 1.2 | |||
| 403DH-64C2 | 40240 | 11800 | 3600 | 6.8 | 3.25 | 1.2 | |||
| 453DH-72C2 | 46040 | 13500 | 4000 | 7.6 | 3.4 | 1.4 | |||
| 503DH-80C2 | 50800 | 14900 | 4400 | 8.1 | 3.4 | 1.4 | |||
| 503DH-83C2 | 52510 | 15400 | 4550 | 8.6 | 3.4 | 1.4 | |||
| 603DH-90C2 | 57290 | 16800 | 5100 | 9.5 | 3.3 | 1.4 | |||
| 603DH-95C2 | 60020 | 17600 | 5300 | 10 | 3.3 | 1.4 | |||
| PARALLEL TYPE | 303DH-47C2Y | 29500 | 8650 | 2700 | 5 | 3.2 | 1.8 | ||
| 403DH-50C2Y | 32220 | 9450 | 2900 | 5.4 | 3.2 | 1.8 | |||
| 353DH-56C2Y | 35460 | 10400 | 3200 | 6.2 | 3.25 | 1.8 | |||
| 403DH-64C2Y | 40240 | 11800 | 3600 | 6.8 | 3.25 | 1.8 | |||
| 453DH-72C2Y | 46040 | 13500 | 4000 | 7.6 | 3.4 | 1.8 | |||
| 503DH-80C2Y | 50800 | 14900 | 4400 | 8.1 | 3.4 | 1.8 | |||
| 503DH-83C2Y | 52510 | 15400 | 4550 | 8.6 | 3.4 | 1.8 | |||
| 603DH-90C2Y | 57290 | 16800 | 5100 | 9.5 | 3.3 | 1.8 | |||
| 603DH-95C2Y | 60020 | 17600 | 5300 | 10 | 3.3 | 1.8 | |||
