Szczegóły Produktu:
Zapłata:
|
| Stan: | Nowy | Typ: | wyparna chłodnica powietrza |
|---|---|---|---|
| Wydajność chłodnicza: | 17900 W | Tom: | 22,7 l |
| Ilość: | 4 fanów | Średnica wentylatora: | 500 mm |
| Napięcie: | 380V | Moc: | 4x414 W |
| Zakres: | 15 m | Odmrażająca moc płetw: | 9600 W |
| Moc patelni do rozmrażania: | 4800 W | ||
| High Light: | evaporator in refrigeration system,air cooler evaporator |
||

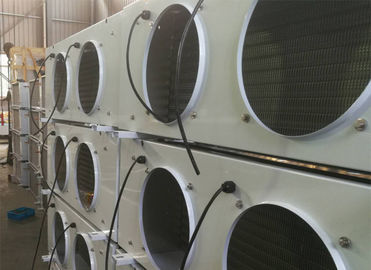

Model:DJ17.9/105 15HP Electrical Defrosting Air Cooler Evaporator for low temperature cold storage
Product Description and Features:
1. Panel and side plates are well constructed by using step structure, reducing the noise caused by fan and fan vibration. Water pan and side plate are easy to dismantle.
2. After treatment of phosphating and surface spray, the shell becomes corrosion resistance, smooth and acheieves a longer life span.
3. Automiatic molding process ensures dry and clean interior of the copper tube.
4. 2.6Mpa air tightness test satisfied product air tightness requirements.
5. Expaned by liquid pressure machine, the aluminum fin and copper tube are combined tightly and achieves a stable effect of heat transfer.
6. Fanmous brand fan and heat tube achieves stable quanlity, low noise, less energy consumption and high efficiency.
7. Slot type rack design convenien for installation.
8. All wires and plugs are connected in an electrical box, convenient for installation and maintiance.
9. Electric defrosting selects high insulation performance stainless steel heating tube. Reasonable distribution achieves short time defrost, high efficiency and low conomsuption.. Users can add module in the controller to realize the automatic defrosting control. Fast efficient deforsting and less energy cost.
| DJ condole type air cooler technology parameters | ||||||||||||
| Model | Refrigerating capacity | Nominal area | Volume | Inlet/Outlet tube of refrigerant | Eletrothermal defrosting | Parameters of fan | ||||||
| Defrosting power of fins | Power of defrosting pan | Quantity |
Diameter of fan | Voltage | Power | Air Volume | Range | |||||
| W | ㎡ | L | mm | W | W | N | mm | V | W | m3/h | m | |
| DJ-1.7/10 | 1700 | 10 | 2.7 | Ф12/Ф19 | 2400 | 1200 | 2 | 300 | 380/220 | 2*75 | 3126 | 8 |
| DJ-3.4/20 | 3400 | 20 | 5.8 | Ф16/Ф22 | 2400 | 1200 | 2 | 400 | 380/220 | 2*180 | 6800 | 10 |
| DJ-5.1/30 | 5100 | 30 | 7.6 | Ф16/Ф22 | 3000 | 1500 | 2 | 400 | 380/220 | 2*180 | 6800 | 10 |
| DJ-8.9/55 | 8900 | 55 | 13.5 | Ф19/Ф40 | 6000 | 1500 | 2 | 500 | 380 | 2*414 | 12000 | 15 |
| DJ-14.3/85 | 14300 | 85 | 19.6 | Ф25/Ф40 | 8000 | 4000 | 3 | 500 | 380 | 3*414 | 18000 | 15 |
| DJ-17.9/105 | 17900 | 105 | 22.7 | Ф25/Ф48 | 9600 | 4800 | 4 | 500 | 380 | 4*414 | 24000 | 15 |
| DJ-23.9/140 | 23900 | 140 | 32.2 | Ф25/Ф50 | 12000 | 4800 | 4 | 500 | 380 | 4*414 | 24000 | 15 |
| DJ-28.9/170 | 28900 | 170 | 41.9 | Ф28/Ф54 | 16800 | 4800 | 4 | 550 | 380 | 4*600 | 32000 | 15 |
| DJ-35.8/210 | 35800 | 210 | 51.6 | Ф28/Ф54 | 21600 | 4800 | 4 | 600 | 380 | 4*780 | 40000 | 15 |
|
Remark:When Tr=-18℃ and Δt=7℃,R134a energy should multiply correction factor f,that is QoR134a =QoR22Xf. |
||||||||||||
