| Type: | Aspera heremetic | Power Source: | AC Power |
|---|---|---|---|
| Mute: | Yes | Model Number: | FF8.5HBK |
| Configuration: | Portable | Lubrication: | Oil-less |
| Nazwa handlowa: | Embraco | Voltage: | 200-220V,50Hz,or 230V 60HZ |
| High Light: | embraco refrigeration compressors,aspera refrigeration compressor |
||
They are small, have low noise and vibration levels, they achieve the highest levels of efficiency available in the market

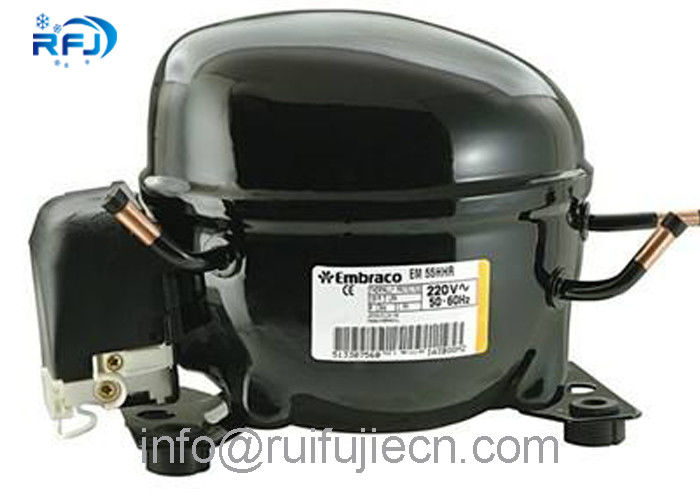

Embraco Aspera Freezer/Refrigerator Compressor :
• Low levels of noise and vibration
• Standard, medium, high and very high levels of efficiency
• Available for R-134a, R-600a and R-290
• Developed for LBP applications can be adapted for M / HBP applications
• Designed for domestic and medium-sized commercial applications.
Discription:
| Refrigerant: | R-134a | Displacement (cm³): | 5,54 |
| Voltage: | 220 V 50-60 Hz 1 ~ | Lubricant Type: | ISO22 |
| Frequency (Hz): | 50 | Lubricant Charge (ml): | 160 |
| Application: | LBP | Motor Type: | RSIR-CSIR |
| HP: | 1/6+ | Starting Torque: | LST |
| Efficiency: | 2,05 | Type of Test: | ASHRAE32 |
| Capacity: | 554 |
External Features:
| Shape | Material | Diameter (mm) | |
| Suction Connector | Straight | Copper | 6,50 |
| Discharge Connector | Straight | Copper | 4,94 |
| Process Connector | Straight | Copper | 6,50 |
| Oil Cooler: | |
| Base Plate: | Universal EG/F/AMEM version 2 |
| Tray Holder: | No |
| Weight (kg): | 7,61 |
Application
| Maximum ambient temperature (ºC): | 32 |
| Expansion device: | Capillary |
| Cooling: | Fan Cooling |
| Air flow rate: |
Mechanical Data
| Bill of materials: | 513307025 |
| Starting torque: | Low Starting Torque |
| Bore (mm): | 21,00 |
| Stroke (mm): | 8,00 |
| Weight (kg): | 7,61 |
Electrical Data
| Motor type: | RSIR-CSIR |
| Winding Resistance (25ºC) - Start: | 28,20 |
| Winding Resistance (25ºC) - Run: | 10,70 |
Stocks Always Available:
| Refrigerant R134a Medium/High Back Pressure | |
| EMT45HDR | 1/6HP |
| EMT6170Z | 1/3HP |
| EM65HHR | 1/4HP |
| NE6170Z | 1/3HP |
| NE6187Z | 3/8HP |
| NEK6212Z | 1/2HP |
| NEK6214Z | 3/4HP |
| T6215Z | 3/4HP |
| NJ6220Z | 1HP |
| NJ6226Z | 1.25HP |
| Refrigerant R134a Low Back Pressure | |
| EMT45HLR | 1/6HP |
| EMT55HLR | 1/5HP |
| EMT65HLR | 1/4HP |
| FF7.5HAK | 1/3HP |
| FF10HAK | 7/16HP |
| FF8.5HBK | 1/3HP |
| FFI 12HBK | 1/2HP |
| NB1118Z | 1/3HP |
| NE1121Z | 7/16HP |
| NE1130Z | 1/2HP |
| NE2130Z | 1/2HP |
| NE2134Z | 9/16HP |
| NE2140Z | 3/4HP |
